جزئیات محصول
محل منبع: هنان، چین
نام تجاری: Zhenglan Cable
گواهی: ISO 9001:2015，ISO 14001:2005
شماره مدل: کابل LV
شرایط پرداخت و ارسال
مقدار حداقل تعداد سفارش: قابل مذاکره
قیمت: قابل مذاکره
جزئیات بسته بندی: طبل چوبی، درام چوبی آهنی یا در صورت نیاز
زمان تحویل: 15-30 روز
شرایط پرداخت: L/C، T/T
قابلیت ارائه: 16000 کیلومتر در سال
ساختار: |
AAC/XLPE+AAAC/XLPE |
هادی کابل فاز: |
AAC |
مواد عایق: |
XLPE |
هادی کابل خنثی: |
AAAC |
عایق کابل خنثی: |
XLPE |
ولتاژ: |
0.6/1kV |
برنامه: |
استفاده از انتقال سربار |
استاندارد: |
IEC 60502-1 |
ساختار: |
AAC/XLPE+AAAC/XLPE |
هادی کابل فاز: |
AAC |
مواد عایق: |
XLPE |
هادی کابل خنثی: |
AAAC |
عایق کابل خنثی: |
XLPE |
ولتاژ: |
0.6/1kV |
برنامه: |
استفاده از انتقال سربار |
استاندارد: |
IEC 60502-1 |

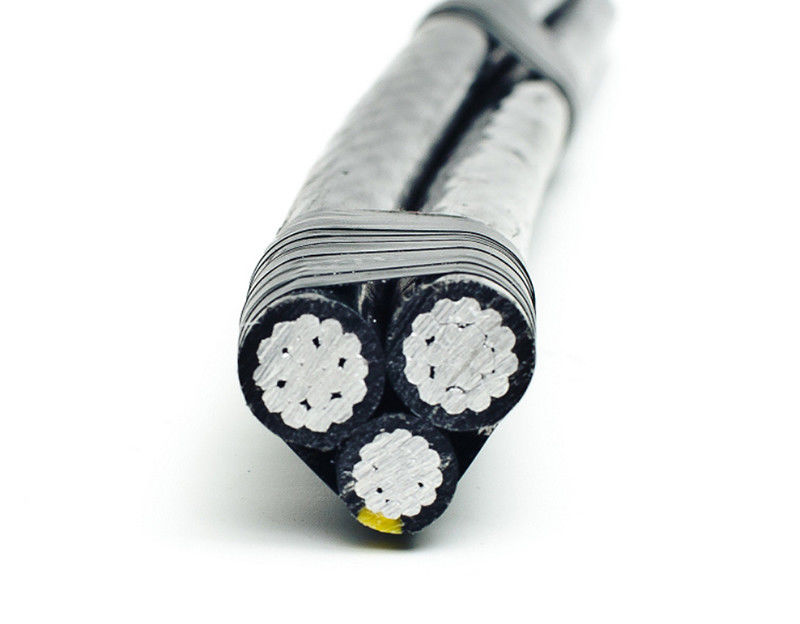

0.6/1kV 2Cx25 NA 1Cx25mm² Aerial Bundled Cable Overhead transmission use ISO 14001:2005
1kV aerial bundled cable without street lighting 2Cx25(AAC/XLPE)+NA1Cx25sqmm(AAAC/XLPE)Application:
For aerial reticulating to residential, rural and uncleared areas where reliability, safety and low installation costs
are required.
Other benefits include: Reduction of bushfire hazards and frequency of tree lopping.
1kV aerial bundled cable without street lighting 2Cx25(AAC/XLPE)+NA1Cx25sqmm(AAAC/XLPE)Construction:
1. Conductor: Aluminium 1350, class 2.
2. Insulation: Cross linked polyethylene XLPE.
3. Insulated neutral messenger: AAAC - All Alloy Aluminium 6201 - XLPE.
1kV aerial bundled cable without street lighting 2Cx25(AAC/XLPE)+NA1Cx25sqmm(AAAC/XLPE)Main characteristics:
Decreases energy theft, cross-linked polyethylene allows more current capacity and high insulation resistance, lower inductive reactance than with bare conductors, used in overhead distribution lines. Increased safety due to its mechanical strength and toughness of the insulation. Insulators are not necessary for installation. Resistance to abrasion, weather and sunlight.
Core identification:
Phase core identificated by number 1, 2, 3 or ribs
Neutral core identificated by company name, model&size, voltage, meter mark infor or by full ribs as per requirement
1kV aerial bundled cable without street lighting 2Cx25(AAC/XLPE)+NA1Cx25sqmm(AAAC/XLPE) parameters
| CAAI 0,6/1 kV AAAC Covered Neutral without Public Lighting | |||||||||
| Nb. of cores | Phase Cond. Cross Section [mm²] | N° aluminium wires |
Phase conductor diameter(mm) | Min Insulation thickness(mm) | Neutral conductor | MIn.Insulat.Thick of Neutral messenger(mm) | Nom. outer diam(mm) | Approx. weight [kg/km] | |
| sectional area(mm2) | conductor diameter(mm) | ||||||||
| 1 | 16 | 7 | 5 | 1.15 | 25 | 6.4 | 1.15 | 16.2 | 168 |
| 1 | 25 | 7 | 5.8 | 1.15 | 25 | 6.4 | 1.15 | 17 | 196 |
| 2 | 16 | 7 | 5 | 1.15 | 25 | 6.4 | 1.15 | 17.3 | 236 |
| 2 | 25 | 7 | 5.8 | 1.15 | 25 | 6.4 | 1.15 | 18.2 | 291 |
| 2 | 35 | 7 | 6.9 | 1.15 | 25 | 6.4 | 1.15 | 19.7 | 354 |
| 2 | 35 | 7 | 6.9 | 1.15 | 50 | 9.1 | 1.53 | 22.8 | 453 |
| 2 | 50 | 19 | 8.1 | 1.53 | 35 | 7.6 | 1.15 | 23.7 | 489 |
| 2 | 50 | 19 | 8.1 | 1.53 | 50 | 9.1 | 1.53 | 25.3 | 554 |
| 2 | 70 | 19 | 9.8 | 1.53 | 50 | 9.1 | 1.53 | 27.7 | 692 |
| 3 | 16 | 7 | 5 | 1.15 | 25 | 6.4 | 1.15 | 18.7 | 304 |
| 3 | 25 | 7 | 5.8 | 1.15 | 25 | 6.4 | 1.15 | 20.2 | 386 |
| 3 | 25 | 7 | 5.8 | 1.15 | 35 | 7.6 | 1.15 | 20.8 | 420 |
| 3 | 35 | 7 | 6.9 | 1.15 | 25 | 6.4 | 1.15 | 22.2 | 480 |
| 3 | 50 | 19 | 8.1 | 1.53 | 35 | 7.6 | 1.15 | 26.7 | 666 |
| 3 | 70 | 19 | 9.8 | 1.53 | 50 | 9.1 | 1.53 | 31.2 | 939 |
| 3 | 70 | 19 | 9.8 | 1.53 | 70 | 10.7 | 1.53 | 32.0 | 1006 |
| 3 | 95 | 19 | 11.5 | 1.53 | 50 | 9.1 | 1.53 | 34.4 | 1186 |
| 3 | 95 | 19 | 11.5 | 1.53 | 70 | 10.7 | 1.53 | 35.3 | 1253 |
| 3 | 120 | 19 | 12.8 | 2.04 | 70 | 10.7 | 1.53 | 39.7 | 1539 |
| 3 | 185 | 37 | 16 | 2.04 | 50 | 9.1 | 1.53 | 45.0 | 2074 |
| 3 | 240 | 37 | 18.4 | 2.04 | 50 | 9.1 | 1.53 | 49.4 | 2591 |
Company introduction
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
