جزئیات محصول
محل منبع: هنان، چین
نام تجاری: Zhenglan Cable
گواهی: 3C,ISO 9001:2015,ISO 14001:2005
شماره مدل: کابل هوایی آلومینیومی 0.6/1KV عایق XLPE
شرایط پرداخت و ارسال
مقدار حداقل تعداد سفارش: 100 متر
جزئیات بسته بندی: درام چوبی، درام چوبی و فولادی به درخواست مشتری
زمان تحویل: 15-30 روز
شرایط پرداخت: L/C، T/T،
قابلیت ارائه: 100 کیلومتر در ماه
مواد عایق: |
XLPE یا HDPE |
ولتاژ: |
1Kv/10Kv |
استفاده: |
سربار یا نیروگاه |
تایپ کنید: |
ولتاژ پایین / ولتاژ متوسط |
استانداردها: |
IEC60502، NF C33-209، GB 12527-90 ASTM |
مواد هادی: |
مس، آلومینیوم، آلیاژ آلومینیوم |
مواد عایق: |
XLPE یا HDPE |
ولتاژ: |
1Kv/10Kv |
استفاده: |
سربار یا نیروگاه |
تایپ کنید: |
ولتاژ پایین / ولتاژ متوسط |
استانداردها: |
IEC60502، NF C33-209، GB 12527-90 ASTM |
مواد هادی: |
مس، آلومینیوم، آلیاژ آلومینیوم |

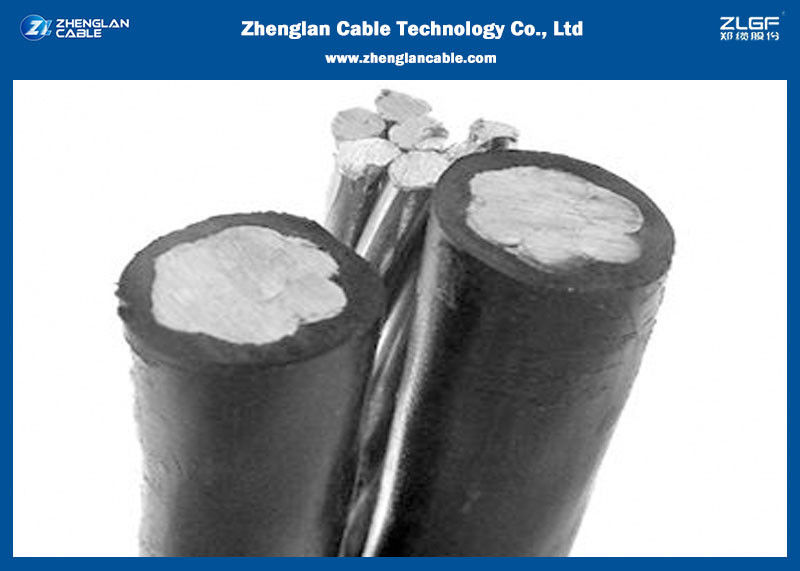

1Kv/10Kv Aluminum Aerial Bundle Conductor , Aluminum Aerial Cable XLPE Insulated
Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: XLPE or HDPE
Type: Low Voltage/Medium Voltage
Application: Overhead or Power station
Conductor Material: copper, aluminum,aluminum alloy
Standards: IEC60502, NF C33-209, GB 12527-90 ASTM
Packaging Details: Wooden case, wooden-steel case, coil or plastic drumor customized
Aluminum Aerial Bundle Conductor Application:
It is preferred to use of service drop (ABC cables) instead of uninsulated conductors
at low voltage networks. service drop (ABC cables)are especially used at areas
where the cost of underground networks is expensive and also
for electrification of rural areas like villages.
Why Choose Zhenglan Cable:
| Model | Description |
| JKV-0.6/1 | Copper core PVC insulated aerial insulated cable rated voltage 0.6/1kV |
| JKLV-0.6/1 | Aluminum core PVC insulated aerial insulated cable rated voltage 0.6/1kV |
| JKLHV-0.6/1 | Aluminum alloy core PVC insulated aerial insulated cable rated voltage 0.6/1kV |
| JKY-0.6/1 | Copper core PE insulated aerial insulated cable rated voltage 0.6/1kV |
| JKLY-0.6/1 | Aluminum core PE insulated aerial insulated cable rated voltage 0.6/1kV |
| JKLHY-0.6/1 | Aluminum alloy core PE insulated aerial insulated cable rated voltage 0.6/1kV |
| JKYJ-0.6/1 | Copper core XLPE insulated aerial insulated cable rated voltage 0.6/1kV |
| JKLYJ-0.6/1 | Aluminum core XLPE insulated aerial insulated cable rated voltage 0.6/1kV |
| JKLHYJ-0.6/1 | Aluminum alloy core XLPE insulated aerial insulated cable rated voltage 0.6/1kV |
