جزئیات محصول
محل منبع: هنان، چین
نام تجاری: Zhenglan cable
گواهی: CE,3C,ISO 9001:2015,ISO 14001:2005
شماره مدل: RVVB، RV، RVVP، RV-90، RVS-#7641
شرایط پرداخت و ارسال
مقدار حداقل تعداد سفارش: 100 متر
جزئیات بسته بندی: 100 فوت در سیم پیچ یا موارد دیگر به صورت سفارشی
زمان تحویل: 15-30 روز
شرایط پرداخت: L/C، T/T،
مواد هادی: |
99.99٪ مس بدون اکسیژن |
برنامه: |
در کنترل سوئیچ استفاده می شود |
نوع هادی: |
جامد / رشته ای |
نرخ ولتاژ: |
450/750 ولت |
تعیین کد: |
60227 IEC 53 (بین المللی) |
ماندگاری: |
30 سال |
بین المللی: |
IEC 60227 |
شماره مدل: |
BV |
مواد هادی: |
99.99٪ مس بدون اکسیژن |
برنامه: |
در کنترل سوئیچ استفاده می شود |
نوع هادی: |
جامد / رشته ای |
نرخ ولتاژ: |
450/750 ولت |
تعیین کد: |
60227 IEC 53 (بین المللی) |
ماندگاری: |
30 سال |
بین المللی: |
IEC 60227 |
شماره مدل: |
BV |
Application:

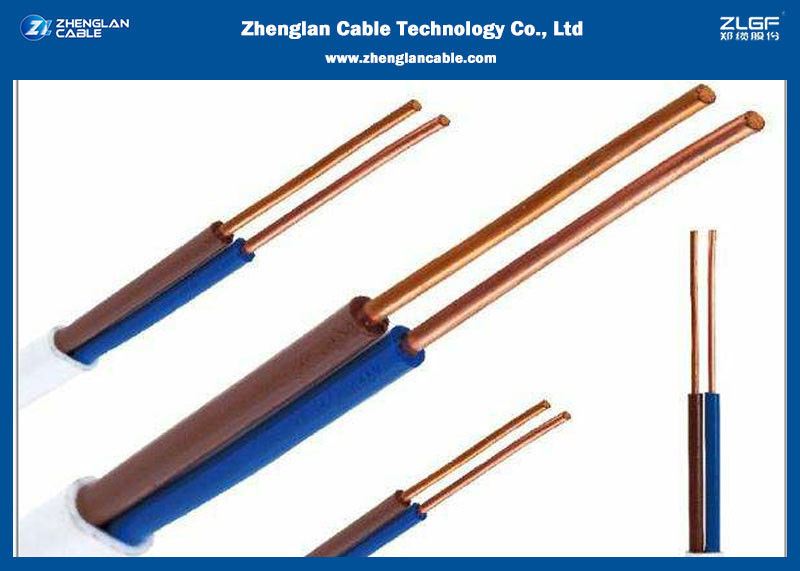

RV cable is widely used in industrial distribution field. It is especially suitable for flexible installation places with stricter requirements, such as electronic control cabinets, distribution boxes and various low-voltage electrical equipment. It can be used for transmission of power, electrical control signals and switching signals. RV wire and cable are designed with soft structure. The bending radius of conductor is small, and it is suitable for wet and oily installation places.
Construction characteristics
Conductor: flexible conductor class 5 (China GB/T 3956 class 5 or
IEC60228 class 5)
Insulation: PVC
Rated voltage and standard:
450/750V 60227 IEC02 or GB/T5023.3-2008
Minimum service temperature: - 30 C
Maximum service temperature available +70 °C, +90 °C, +105 °C
Packaging: 100m/roll or as request
Remarks: Flame retardant, fire resistance (adopt mica tape), low smoking and Halogen free, or other property are available.
ZR cable (flame retardant cable) is the kind of cable with PVC insulation built mixed with fire prevention additive to make it have the capability of preventing or retarding flame spread during combustion.
There are 3 grades of fire prevention available which are
Grade A It is the highest level of flame retardancy. That is, the insulation material, filling rope, fastening (inner cushion) belt/layer and sheath material used in cables are all flame retardant materials.
Grade B Except the insulation material, all other materials are flame retardant.
Grade C Only the sheath material is flame retardant
NH cable (fire resistant cable) is the kind of cable built with a layer of mica tape. Even if the plastic skin is burnt out, refractory layer will help not cause short circuit. When wiring, cut off the refractory layer at the wire head.
LSZH,LSOH,LS0H,LSFH or OHLS cable(Low smoke zero halogen cable)is cable with insulation or outer sheath built using low smoke zero halogen free material to help reduce toxic and corrosive gases produced during combustion.
Termite-proof cable is the cable built with insulation or outer sheath mixed with a kind of materials to prevent termite biting the cable.
Data sheet
450/750V
| Nominal section area(mm²) | No ./Dia. of Strand mm |
Nom. Thickness of insulation mm |
Average OD (Max.) mm |
Max. DC conductor resistance at 20℃ Ω/km |
Min. Insulating resistance at 70℃ MΩ·km |
| 1*1.5 | 30/0.25 | 0.7 | 3.5 | 13.3 | 0.010 |
| 1*2.5 | 50/0.25 | 0.8 | 4.2 | 7.98 | 0.009 |
| 1*4 | 77/0.26 | 0.8 | 4.8 | 4.95 | 0.007 |
| 1*6 | 78/0.31 | 0.8 | 6.3 | 3.30 | 0.006 |
| 1*10 | 84/0.39 | 1.0 | 7.6 | 1.91 | 0.0056 |
| 1*16 | 133/0.39 | 1.0 | 8.8 | 1.21 | 0.0046 |
| 1*25 | 189/0.41 | 1.2 | 11.0 | 0.78 | 0.0044 |
| 1*35 | 259/0.41 | 1.2 | 12.5 | 0.554 | 0.0038 |
| 1*50 | 361/0.41 | 1.4 | 14.5 | 0.386 | 0.0037 |
| 1*70 | 337/0.51 | 1.4 | 17.0 | 0.272 | 0.0032 |
